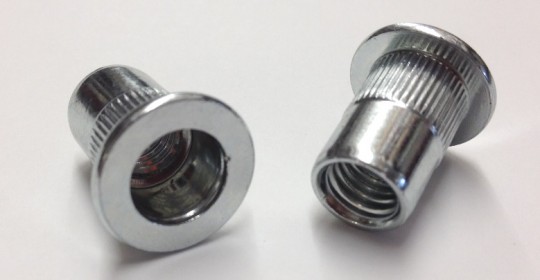

These steel large flange Riv nuts are splined with an open end.
Optimal for high push-out applications.
Dimensioned for installation into hard metal holes. Tapered entry.
Splined body improves torque-to-turn resistance.
Flange width = 21.7mm
Grip range = 1.00 - 4.00 mm
Overall length = 25.2mm
Thread pitch = 1.75mm
Hole size = 16.0mm
