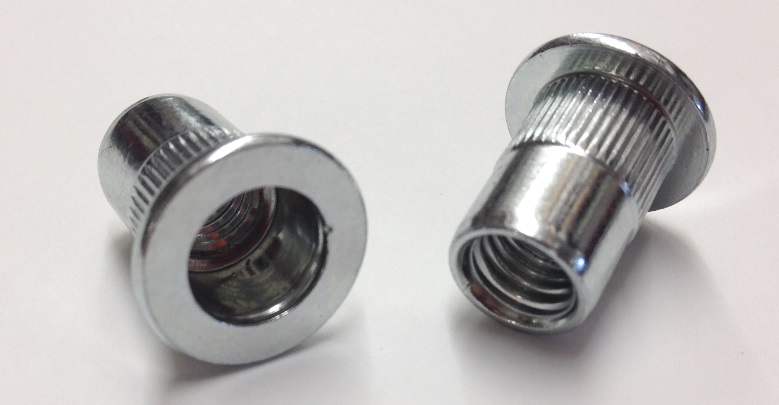

These steel large flange Riv nuts are splined with an open end.
Optimal for high push-out applications.
Dimensioned for installation into hard metal holes. Tapered entry.
Splined body improves torque-to-turn resistance.
Flange width = 13.0mm
Grip range = 0.50 - 3.00 mm
Overall length = 16.5mm
Thread pitch = 1.0mm
Hole size = 9.0mm
