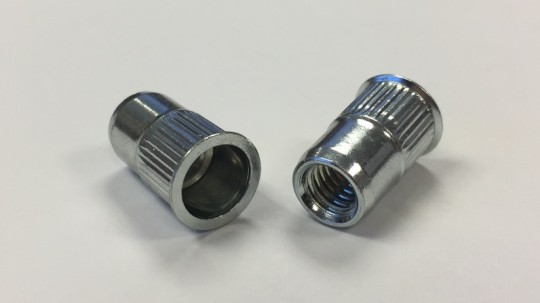

These steel Riv nuts are splined with an open end and have a Low Profile head.
Optimal for low load bearing applications in thin sheet.
Dimensioned for installation into hard metal holes.
Splined body improves torque-to-turn resistance.
Flange width = 10.0mm
Grip range = 0.50 - 3.00 mm
Overall length = 15.0mm
Thread pitch = 1.0mm
Hole size = 9.0mm
