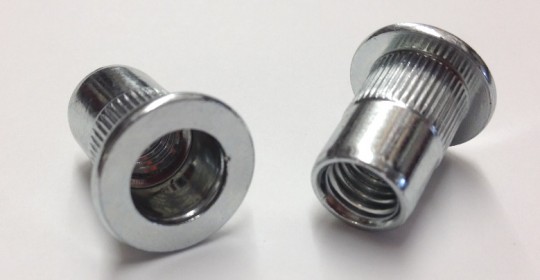

These steel large flange Riv nuts are splined with an open end.
Optimal for high push-out applications.
Dimensioned for installation into hard metal holes. Tapered entry.
Splined body improves torque-to-turn resistance.
Flange width = 16mm
Grip range = 1.00 - 3.00 mm
Overall length = 17.5mm
Thread pitch = 1.25mm
Hole size = 11.0mm
