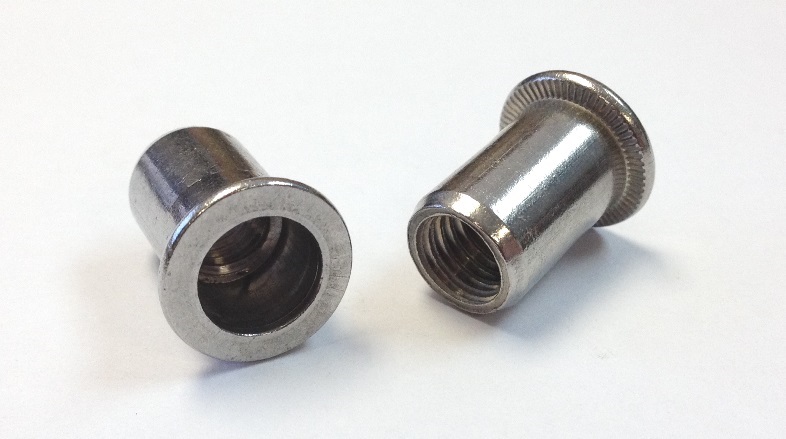

Stainless steel 304 grade
Optimal for high push-out applications. Dimensioned for installation into hard metric holes. Tapered entry. Splined body improves torque-to-turn resistance.
Flange width = 12.0mm
Grip range = 0.50 - 3.00 mm
Overall length = 15.5mm
Thread pitch = 1.0mm
Hole size = 9.0mm
